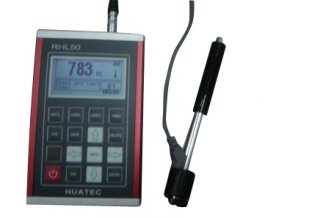

Portable Leeb Hardness Tester, portable hardness tester RHL50
Main Features
●LCD display of 128×64 matrix with back-light, showing all functions and parameters.
●Converts to all common hardness scales (HV, HB, HRC, HRB, HRA, HS).
●English displaying and easy and convenient menu operation.
●Powerful PC Software available and USB 2.0 interface.
●7 types of Impact Device optional, which don't need to be recalibrated when changing them.
●Memory of 600 groups data(impact times:32～1).
●Lower limit setting and sound alarm.
●Material of “cast steel” is added; HB values can be read out directly when D/DC impact device is used to measure “cast steel” work piece.
●Printer be separated from main unit and copies of testing results can be printed as required.
●In-built Smart Li lon rechargeable battery while USB connected and charging controlling circuit.
●Inbuilt function of Software Calibration.
●Two ways of switching off by key and automatically
Specifications of hardness tester RHL50
Hardness scale HL, HB, HRB, HRC, HRA, HV, HS
Memory 48～600 groups (impact times: 32～1)
Measuring range HLD(170～960)See below table 1 and table 2
Accuracy ±6HLD (760±30HLD) error of displayed value
6HLD (760±30HLD) repeatability of displayed value
Standard Impact Device D
Optional Impact Devices DC/D+15/G/C/DL
Max. Workpiece Hardness 996HV(For Impact Devices D/DC/DL/D+15/C)
646HB(For Impact Device G)
Min. Radius of Workpiece (convex/concave) Rmin = 50mm (with special support ring Rmin= 10mm)
Min. Workpiece weight 2~5kg on stable support
0.05~2kg with compact coupling
Min. Workpiece thickness 5mm (Impact Devices D/DC/DL/D+15)
1mm (Impact Device C)
10mm (Impact Device G)
Min. thickness of hardened surface 0.8mm
Power AA battery
Continuous Working time approx. 100 h (no back light off)
Charging time 2-3.5 h
Operating temperature 0~40℃
Relative humidity ≤90%
Overall dimensions 152×84×34mm (main unit)
Weight 0.3kg (main unit)
Main Application of portable hardness tester RHL50
●The assembled machinery and permanently installed parts
●Die cavity of molds
●Heavy work piece
●Failure analysis of pressure vessel, steam turbo-generator set and other equipment
●Narrow testing space where work piece installed
●Bearings and other parts
●Cases which require the test result with normalized original recording
●Material identification of the metal material warehouse
●Quick tests of large range and multipoint measuring positions for heavy workpiece
Standard delivery of portable hardness tester RHL50
●Main unit
●Impact Device type D
●Test block with HLD value
●Charger
●Nylon brush
●Small supporting ring
●DataView Software
●USB&RS232 Communication cable
●Calibration Certificate
●Instruction manual
●Warranty card
●Carrying case
Optional accessories of portable hardness tester RHL50
●Optional Impact Devices DC/D+15/G/C/DL
●Normal and special type support rings (14pcs)
●Other test block (High, medium and low value))
●Printer
●Impact body
●Impact ball tip
●Tools for changing the ball tip
Testing range see table 1 and table 2.
Table 1
| Material | Hardness method | Impact device |
| D/DC | D+15 | C | G | E | DL |
| Steel and cast steel | HRC | 17.9～68.5 | 19.3～67.9 | 20.0～69.5 | | 22.4～70.7 | 20.6～68.2 |
| HRB | 59.6～99.6 | | | 47.7～99.9 | | 37.0～99.9 |
| HRA | 59.1~85.8 | | | | 61.7～88.0 | |
| HB | 127～651 | 80～638 | 80～683 | 90～646 | 83～663 | 81～646 |
| HV | 83～976 | 80～937 | 80～996 | | 84～1042 | 80～950 |
| HS | 32.2～99.5 | 33.3～99.3 | 31.8～102.1 | | 35.8～102.6 | 30.6～96.8 |
| Hammered steel | HB | 143~650 | | | | | |
| Cold work tool steel | HRC | 20.4～67.1 | 19.8～68.2 | 20.7～68.2 | | 22.6～70.2 | |
| HV | 80～898 | 80～935 | 100～941 | | 82～1009 | |
| Stainless steel | HRB | 46.5～101.7 | | | | | |
| HB | 85～655 | | | | | |
| HV | 85～802 | | | | | |
| Gray cast iron | HRC | | | | | | |
| HB | 93～334 | | | 92～326 | | |
| HV | | | | | | |
| Nodular cast iron | HRC | | | | | | |
| HB | 131～387 | | | 127～364 | | |
| HV | | | | | | |
| Cast aluminum alloys | HB | 19～164 | | 23～210 | 32～168 | | |
| HRB | 23.8～84.6 | | 22.7～85.0 | 23.8～85.5 | | |
| Brass(copper-zinc alloys) | HB | 40～173 | | | | | |
| HRB | 13.5～95.3 | | | | | |
| Bronze (copper-aluminum/copper-tin alloys) | HB | 60～290 | | | | | |
| Wrought copper alloys | HB | 45～315 | | | | | |
Table 2
| No. | Material | HLD | Strength σb(Mpa) |
| 1 | Mild steel | 350～522 | 374～780 |
| 2 | High-carbon steel | 500～710 | 737～1670 |
| 3 | Cr steel | 500～730 | 707～1829 |
| 4 | Cr-V steel | 500～750 | 704～1980 |
| 5 | Cr-Ni steel | 500～750 | 763～2007 |
| 6 | Cr-Mo steel | 500～738 | 721～1875 |
| 7 | Cr-Ni-Mo steel | 540～738 | 844～1933 |
| 8 | Cr-Mn-Si steel | 500～750 | 755～1993 |
| 9 | Super strength steel | 630～800 | 1180～2652 |
| 10 | Stainless steel | 500～710 | 703～1676 |
Function:
On-line measuring management
Various function keys of data test, store, read, delete, clear, print, input and output to excel etc.
PC Software sample
